Front Service Outdoor Full Color LED Advertising Sign for Shop ( 1*1ft LED Moulde )
Product Features:
1, Our developed products outdoor p9.525 Nationstar SMD3535 led signs with front access.
2, Module size:one feet by one feet.
3, IC:MBI5124. Power supply is MW.
4, High brightness with 8000cd/sqm.
Specifications:
| List | Item | Description |
| 1 | Pixel Pitch | 9.525mm |
| 2 | Module Size | 1*1F |
| 3 | Pixel Density | 11022/㎡ |
| 4 | Pixel composition | 1R1G1B |
| 5 | LED Type | SMD3535 |
| 6 | Module Resolution | 32*32 |
| 7 | Display Weight | 50Kg
Water-proof |
| 8 | Service way | Front Access |
| 9 | Driving Method | 1/2 Scan Constant Current Driving |
| 10 | Frame Frequency | ≥60Hz/s |
| 11 | Refresh Rate | 200Hz/s |
| 12 | White Balance
Luminance(CD/㎡) | ≥8000cd/㎡ |
| 13 | Operating Environment Temperature | -20℃—60℃ Optional |
| 14 | Operating Voltage | 110V±10% |
| 15 | Brightness Adjustment | 1024 grades of each color(R.G.B)can be adjusted manually and 16 levels of each color can be adjusted automatically |
| 16 |
Input Signal | RF,S-Video RF, S-Vido, RGB, RGBHV, YUV etc. |
| 17 | Control System | Asynchronous controllor |
FAQ
1, Why Choose US?
More than 10 Years experience in LED DISPLAY field.
We focus on Quality and Service,and keep your price competitive in your local markets.
2, How to Check quality?
Our products all use good quality led materials,like PCB,plastics,led lamps,ICs,etc.
a,You or your friend can come to our factory before production or after production;
b,Before you place order ,in production and after production,we will take some pictures on
related products.We promise everything is same as we discussed on products.
3,How could I know to control LED display?
Fristly ,if we sell screen for you,control system was be set up in sdvance by us;or if you
buy different spare parts (like module,control card,power supply ) from us,we also can set
up control system in advance ,and we can recommend right control card for you .
Second,we can help you set up led screen by teamviewer or send RCG file to you if you can't
finish set up by yourself in your there
4,Every Customer should know:
LED module may have some color difference ,if you order one type product two more times.
If you have any other problems,please feel free to contact US
Trade Terms
1. Packing: Anti-shaking wooden cabinet /Air flight case/carton
2. Shipping port: Shenzhen. China
3. Shipping freights are quoted according to your requests
4. Delivery time:5-25 working days
5. 2 years warranty, lifelong maintaining.
|
|

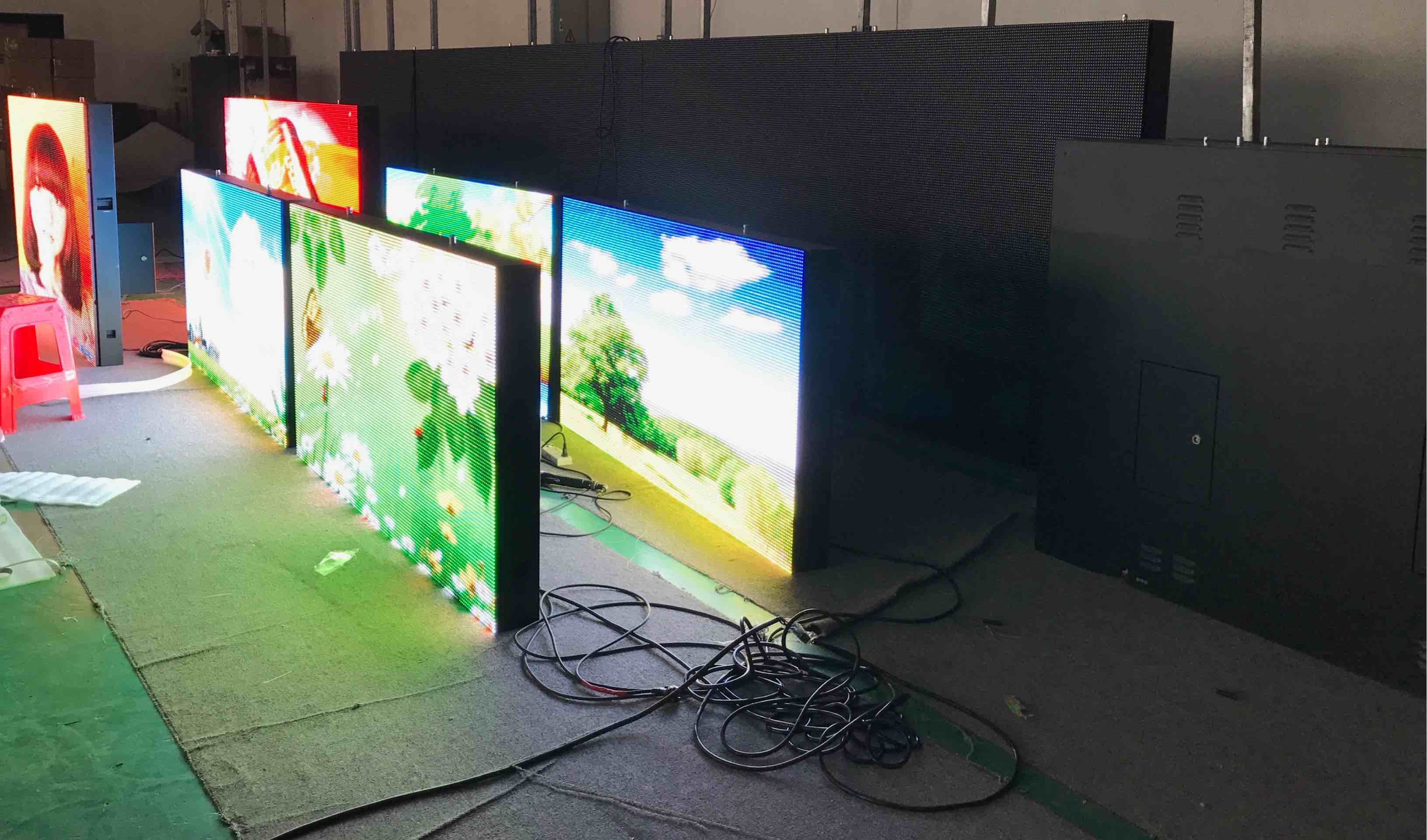

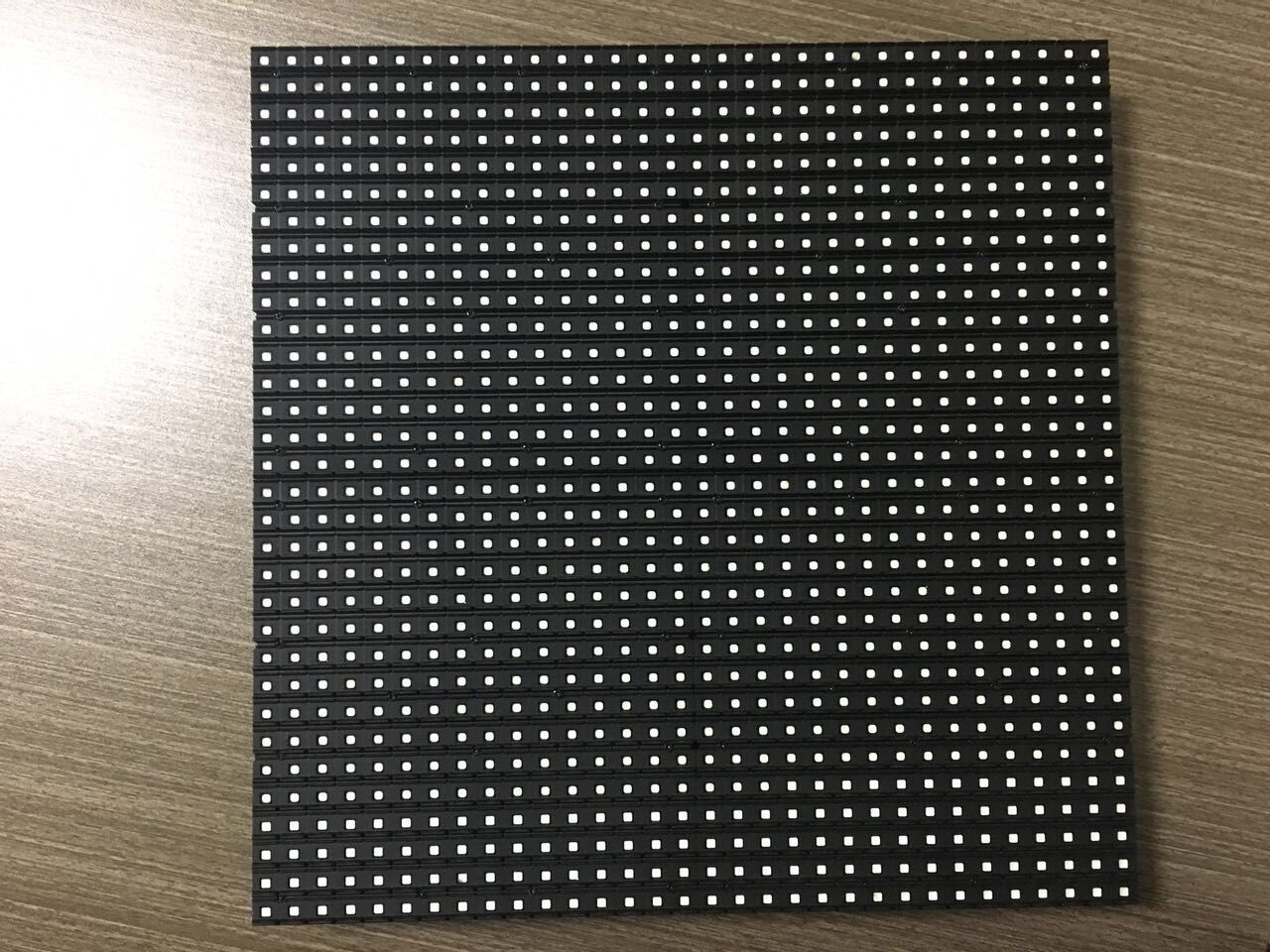

Front Service Outdoor Full Color LED Advertising Sign for Shop ( 1*1ft LED Moulde ) Images
|
